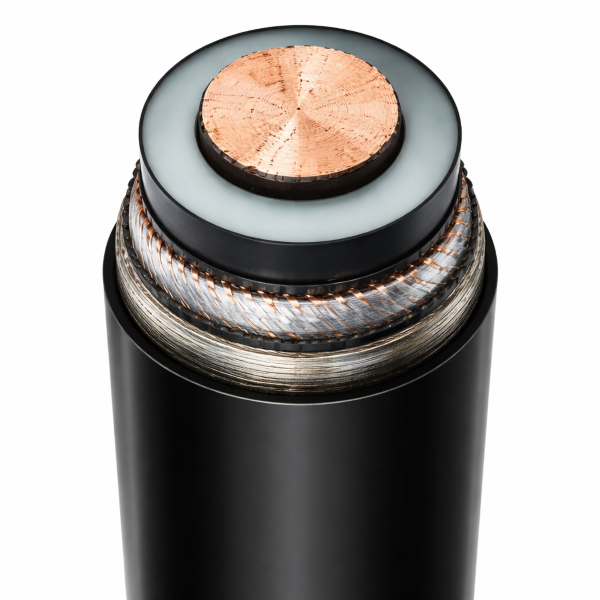

Doha Cables HV & EHV Power Cables, 38/66 kV to 127/220 kV CU/XLPE/CWA/Lead/HDPE – Single Core Copper conductor, XLPE insulation, semi-conductive compounds, copper wire and tape screen, copper wire armour, lead sheath (optional), HDPE outer sheath with graphite coating Single core up to 2500 mm²
Supplier: Doha CablesBrand: Doha Cables
Manufactured Country:Qatar
SKU / Item Code: BT22554
UNSPSC: 26121814
Category: Single core 600 volt class e a...
Main Category: Power Generation and Distribut...
Short Description:
HV and EHV Power Cables are single-core transmission cables designed for voltage levels from 38/66 kV up to 127/220 kV. They feature stranded Class...
Min. order:1|Lead Time:1 Week
Key Attributes
| Feature | Value |
|---|---|
| Material | Copper conductor, XLPE insulation, semi-conductive compounds, copper wire and tape screen, copper wire armour, lead sheath (optional), HDPE outer sheath with graphite coating |
| Standards | IEC 60840; IEC 62067 |
| Applications | High and extra-high voltage power transmission for utilities, substations, power plants, renewable energy projects, and major infrastructure networks |
| Voltage Rating | 38/66 kV up to 127/220 kV |
| Fire Resistance | HDPE sheathed HV/EHV cable construction designed for high electrical and mechanical integrity in transmission environments |
| Size | Single core up to 2500 mm² |
| Conductor Material | Copper |
| Conductor Construction | Stranded circular compacted or segmental (Milliken) |
| Conductor Class | Class 2 |
| Insulation Type | Cross-linked polyethylene (XLPE) |
| Screen Type | Copper wire and copper tape screen |
