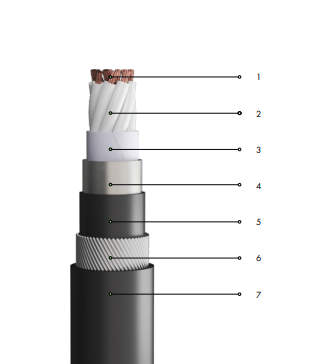

Oman Cables Lead Sheathed Copper Control Cable (0.6/1 kV) 1.5 mm² Copper Conductor, XLPE Insulation, Lead Sheath, PVC Bedding & Sheath, Steel Wire Armour (SWA)
Supplier: Doha Electricals WLLBrand: Oman Cables
SKU / Item Code: DOH0004
Model / Serial Number: LSC-0.6/1kV
UNSPSC: 26121603
Category: Control cable
Main Category: Power Generation and Distribut...
Short Description:
Lead sheathed XLPE insulated control cable with copper conductor, steel wire armour, and PVC outer sheath. Suitable for underground and industrial ins...
Stock:AvailableWarranty:Available
Min. order:1|Lead Time:2
Key Attributes
| Feature | Value |
|---|---|
| Size | 1.5 mm² |
| Material | Copper Conductor, XLPE Insulation, Lead Sheath, PVC Bedding & Sheath, Steel Wire Armour (SWA) |
| Standards | IEC 60502-1, IEC 60228, IEC 60332-1, IEC 60332-3 Cat.A, IEC 60754-1/2, IEC 61034 |
| Applications | Underground control systems, power plants, substations, petrochemical, oil & gas, and hazardous environments |
| Voltage Rating | 0.6/1 kV |
| Fire Resistance | Flame retardant per IEC 60332-1 & IEC 60332-3 (Cat A); halogen-free and low smoke options available |
| Conductor Material | Annealed Copper (Class 2 stranded circular, per IEC 60228) |
| Bedding Material | PVC or Hydrocarbon-Resistant PVC |
| Operating Temperature | +90°C (continuous) |
