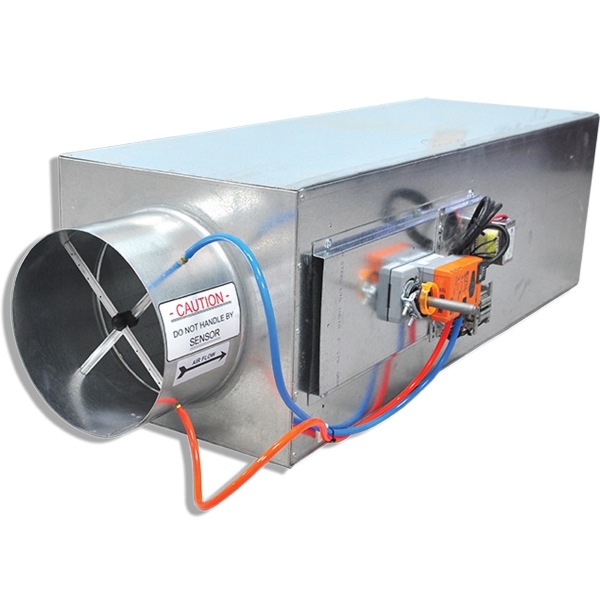

Air Terminals (VAV Units) Supply and Installation
Service Provider:Jersey Group
Service Type:
GeneralMaintenance
SKU / Item Code: BT17171
UNSPSC: 72151204
Category: HVAC ventilation and duct work construction service
Short Description:
JMC manufactures and installs Air Terminal Units (VAVs) that precisely regulate airflow to individual HVAC zones based on temperature requirements. Each terminal is designed for...
Key Attributes
| Feature | Value |
|---|---|
| Type | Single Duct VAV / Dual Duct VAV / Fan Powered VAV / Pressure Independent / Pressure Dependent |
| Material | Galvanized Steel / Aluminum / Stainless Steel |
| Airflow Range | 150 – 3000 CFM |
| Control Type | DDC (Direct Digital Control) / Pneumatic / Analog |
| Heater Type | Electric Resistance / Hot Water Coil |
| Insulation Type | Fiberglass / Closed Cell Foam / No Insulation |
| Mounting Method | Duct Mounted / Ceiling Mounted / Plenum Mounted |
| Sound Level | ≤ 35 NR @ Rated Airflow |
| Certification | AHRI 880 / UL 1995 / AMCA 210 |
| Optional Accessories | Flow Sensor / Actuator / Temperature Sensor / Access Door / Control Panel |
