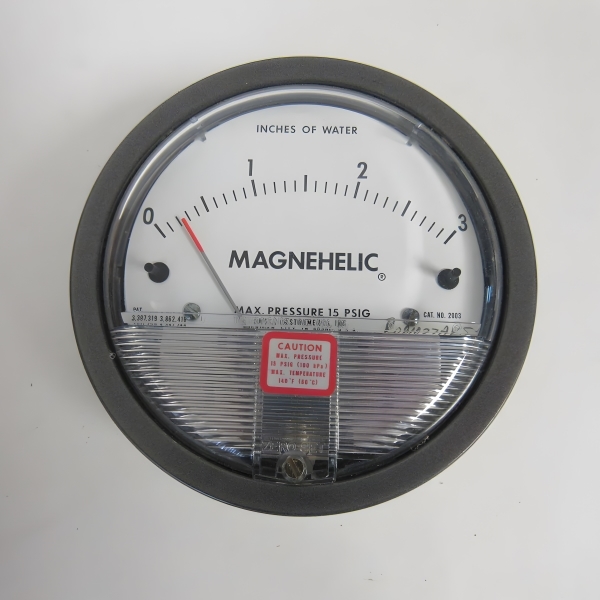

Dwyer Magnehelic Low Differential Pressure Gauge Die-cast aluminum case and bezel 101.6 mm
Supplier: Protech Technical TradingBrand: Dwyer
Manufactured Country:United States
SKU / Item Code: BT15592
Model / Serial Number: 2003
UNSPSC: 41112412
Category: Pressure gauge
Main Category: Laboratory and Measuring and O...
Short Description:
The Dwyer 2003 Magnehelic® Differential Pressure Gauge offers accurate measurement of differential pressures from 0–3.0 in w.c. with ±2% accuracy. ...
Min. order:1|Lead Time:1 Week
Key Attributes
| Feature | Value |
|---|---|
| Material | Die-cast aluminum case and bezel |
| Size | 101.6 mm |
| Environmental Rating | IP67 |
| Operating temperature range | 20 to 140 °F |
| Special Features | Measures differential pressure up to 3 in w.c. |
| Accuracy | ±2% FS (±1% FS HA models) |
| Pressure Limits | -20 in Hg to 15 psig |
| Window | Acrylic, impact resistant |
| Pressure Type | Differential |
| Overpressure Protection | Relief plug opens at ~25 psig |
| Mounting Orientation | Vertical diaphragm |
