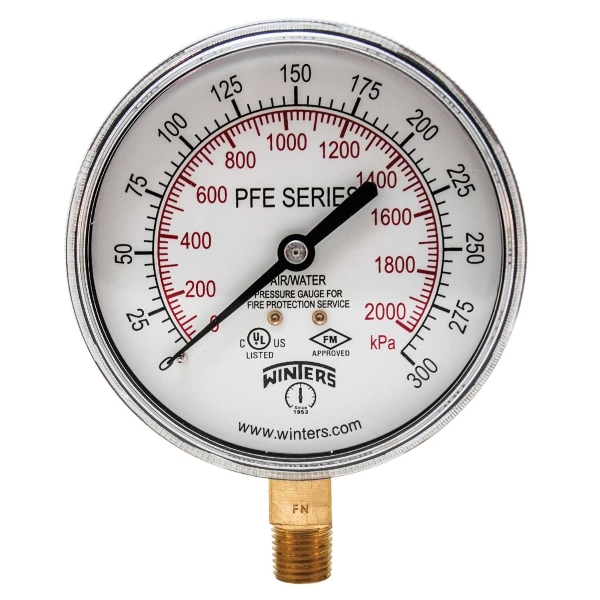

WINTERS Instrument PFE Sprinkler Pressure Gauge, 3.5" Dial, 1/4" NPT Brass 90 mm
Supplier: Pipeline Supplies and Services Co WLLBrand: WINTERS Instrument
Manufactured Country:Canada
SKU / Item Code: BT15638
UNSPSC: 41112412
Category: Pressure gauge
Main Category: Laboratory and Measuring and O...
Short Description:
The PFE Sprinkler Pressure Gauge is built specifically for fire sprinkler systems and firefighting applications. Its 90 mm dial is available with d...
Min. order:1|Lead Time:1 Week
Key Attributes
| Feature | Value |
|---|---|
| Material | Brass |
| Size | 90 mm |
| Environmental Rating | IP52 |
| Operating temperature range | –40 °C to +65 °C |
| Special Features | Designed for fire sprinkler systems and firefighting equipment |
| Connection Size & Type | 1/4 in NPT bottom |
| Pressure Scale | Dual scale (psi/kPa, psi/bar, psi/kg/cm²) or single psi |
| Accuracy | 3-2-3% ASME Grade B |
| Case Material | Black plastic |
| Lens | Polycarbonate |
