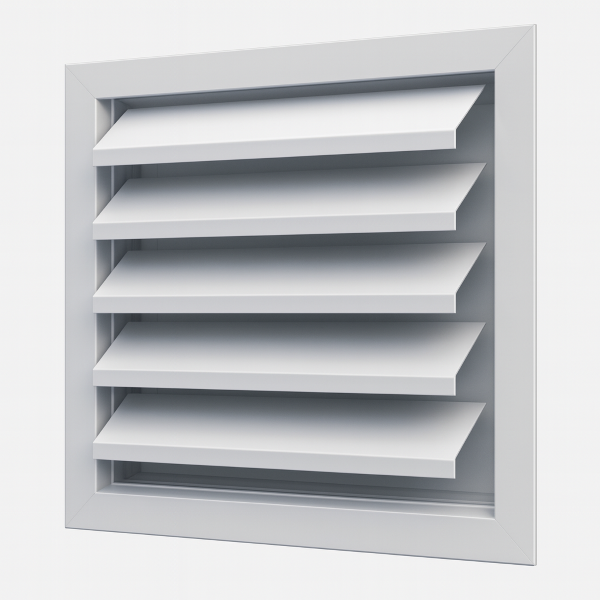

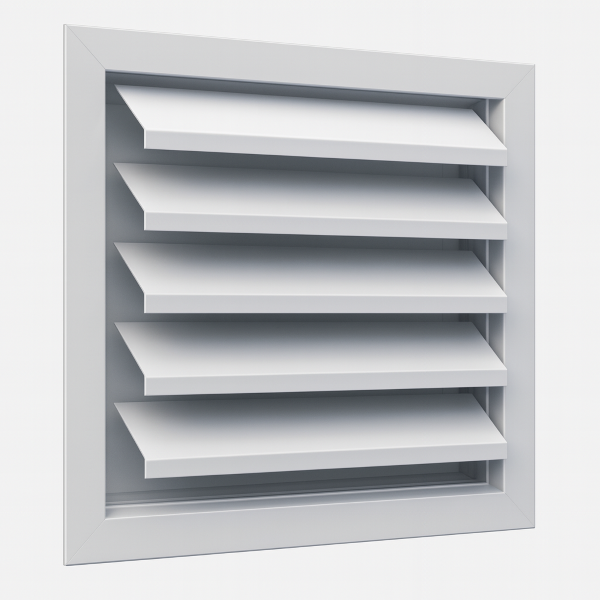

Various Brands Extruded Aluminum Louver — 100 mm Deep, 45° Non-Drainable Blade (Model A455) 2400 × 1500 mm Extruded Aluminum
Supplier: Jersey GroupBrand: Various Brands
Manufactured Country:Qatar
SKU / Item Code: BT17160
Model / Serial Number: A455
UNSPSC: 30161901
Category: Louvers
Main Category: Structures and Building and Co...
Short Description:
The A455 Extruded Aluminum Louver features a 100 mm deep, 45° non-drainable blade design for high-efficiency air intake and exhaust applications. I...
Min. order:1|Lead Time:1 Week
Key Attributes
| Feature | Value |
|---|---|
| Durability | High corrosion and weather resistance |
| Color | Natural Aluminum / Anodized or Powder-Coated Finish |
| Size | 2400 × 1500 mm |
| Material | Extruded Aluminum |
| Installation Method | Wall or duct-mounted |
| Load Capacity | Structural frame rated for external wind loads |
| Surface Finish | Anodized / Powder-Coated |
| Blade Orientation | Horizontal |
| Blade Angle | 45° Fixed (Non-Drainable) |
| Frame Depth | 100 mm (4") |
| Free Area | 57% (9.09 ft² @ 48" × 48") |
| Water Penetration | 886 fpm |
