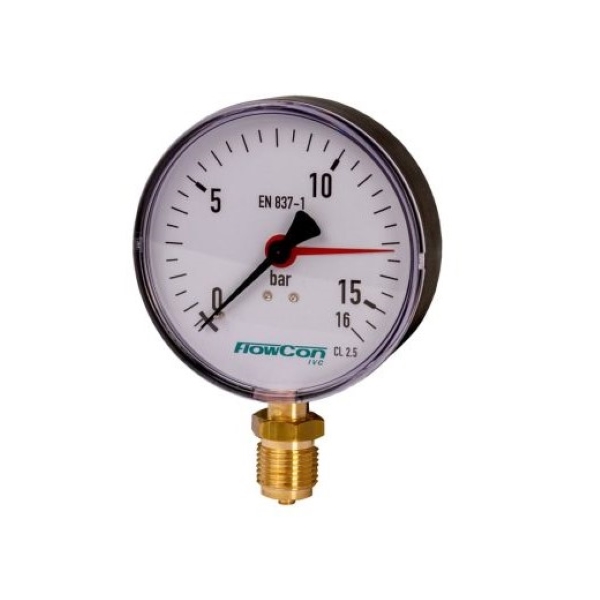

FlowCon IVC Pressure Gauge 0–16 bar – Bourdon Type, EN 837-1 Plastic Case, Copper Alloy Bourdon Tube ISO 228 BSP Male Thread (¼" or ½")
Supplier: Jersey GroupBrand: FlowCon IVC
Manufactured Country:Denmark
SKU / Item Code: BT16735
Model / Serial Number: FPGB_P016
UNSPSC: 41112400
Category: Pressure measuring and control...
Main Category: Laboratory and Measuring and O...
Short Description:
The FIVC FPGB_P016 is a Bourdon-type analog pressure gauge engineered for precise measurement up to 16 bar. Its durable plastic case and copper-all...
Min. order:1|Lead Time:1 Week
Key Attributes
| Feature | Value |
|---|---|
| Material | Plastic Case, Copper Alloy Bourdon Tube |
| Environmental Rating | IP40 (Dry Type, Indoor Use) |
| Dimensions | Ø63 mm standard |
| Special Features | Bourdon tube mechanism, clear analog dial, EN 837-1 accuracy class |
| Operating temperature range | −20 °C to +60 °C |
| Size | ISO 228 BSP Male Thread (¼" or ½") |
| Gauge Type | Bourdon Tube, Analog |
| Pressure Range | 0–16 bar |
| Casing Material | Impact-resistant Plastic |
| Bourdon Tube Material | Copper Alloy |
| Dial Material | Aluminum with black markings on white background |
